Overriding Base Application Events via Design
Created On
Last Updated On
byInsight Works
You are here:
- Main
- Warehouse Insight
- Advanced Customization
- Overriding Base Application Events via Design
There are three important steps in overriding a base event. Here is an example of how you would remove the print dialog after creating a License Plate in the WHI Ship app.
Note
This is example will only cover Warehouse Shipments via application code WHSE_SHIPMENT_DOC, there is also Transfers via TRANSFERS_OUT_DOC and depending on your location configuration Sales Documents via SALES_OUT_DOC)
Create a custom event
-
In Business Central, search ‘WHI Application’, select Warehouse Insight Application list
-
Find the application you are interested in modifying, in our case it’s WHSE_SHIPMENT_DOC, open the application.
-
On the Menu ribbon select Design.
-
Find the function/method you want to overwrite. In our case it is ‘When a License Plate is Stopped’.
- You will want to mirror this function in your own application so take a screenshot.
- Navigate back to the Warehouse Insight Application list and create a new application.
- Give your application a meaningful Code and Description. In my case it will be called ‘MY_CUSTOM_CODE’.
- On the Menu ribbon, again open the Design. You will notice the designer is empty.

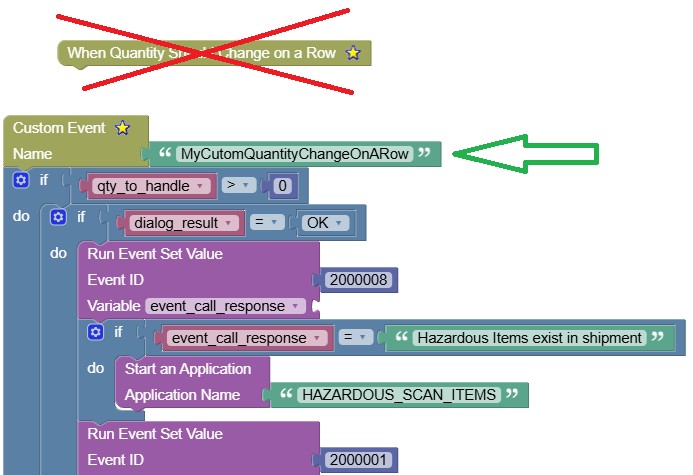

- Create a Custom Event by dragging its associated puzzle piece from the left side bar under ‘Events’ onto the white board.
- Name the event using a meaningful name, remember this name for later. In my example it is ‘Custom Override’.
- Complete the event as you see fit, in this case we are just duplicating the base event we saved in the screenshot earlier and leaving out the printing portion.
- Once you’re done, click Save.
Create a Warehouse Insight Application Override
-
In Business Central, search ‘Application Overrides’. Select the Warehouse Insight Application Overrides list.
-
Create a new override as seen in the image below.
-
Enter a Code and Description that is meaningful. In my case I have entered ‘MY_APP_OVERRIDE’.
-
In the Application Code choose the application you created in step 7. In my case it was ‘MY_CUSTOM_CODE’.
-
In the Events list, start a new line.
-
Choose the Event you wish to override, in our case it is ‘Stop License Plate’.
-
In Trigger, choose if you want to run before or after the base event. In our case we want our code to run ‘Before’ the base event.
-
Enter your event name in the Override Event Name. In our case it is ‘Custom Override’.
-
Choose if you still want to Execute Base Event. In our case this will be ‘No’.
-
-
-
Close the Warehouse Insight Application Override.

Link the App Override with the Base App
-
In Business Central, return to the Warehouse Insight Application list.
-
Open the application you are modifying. In our case it’s ‘WHSE_SHIPMENT_DOC’.
-
Choose the Override Code that you used in step 14.a. In my case it is ‘My_APP_OVERRIDE’.
- You are done! Open your WHI in the scanner and go Options->Reload Config and try your new changes.
